ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper

Brand Name : ZHONGMEI

Model Number : 3 Ton

Certification : CE

Place of Origin : shandong

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : Quantity(sets) 1 - 1000 5 days

Delivery Time : 5 days

Packaging Details : * Wooden box with Standard Export Packing * Film plastic and wooden crate with manufacturer logo outsides. * All of the productions are inspected carefully by QC before delivery.

Product name : 3 T Crawler Transport Truck

Keywords : Crawler Transport Truck

Max. flat Road Loading : 3T Auto Loader Dumper

Gear : Six Forward And Two Backward

Crawler Model(mm) : 350*90*56 Auto Loader Dumper

Standing Slope Angle : 35° Auto Loader Dumper

Contact Now

Introduction of ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper

The versatility of crawler dump trucks is enhanced by their ability to traverse steep slopes and uneven terrain. The combination of the tracked undercarriage and the powerful engine allows the truck to climb gradients that would be difficult or impossible for wheeled vehicles. This capability is especially valuable in mining operations, where materials need to be transported from deep excavations or remote locations.

Operator comfort and safety are essential considerations in the design of crawler dump trucks. The operator's cab is designed to provide a comfortable working environment, with ergonomic controls, adjustable seats, and excellent visibility. Safety features such as rollover protection structures (ROPS), reinforced cabins, and seat belts are incorporated to protect the operator in case of accidents or rollovers. Some models may also have advanced features like rear-view cameras and automatic stability control systems to enhance safety during operation.

Parameters of ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper
 	 			L*W*H(mm)
 			3300*1600*2100
 			Startup Method
 			Electric Start

 			Container Size
 			2200*1500*600
 			Driving Method
 			Mechanical Drive

 			Max. flat Road Loading
 			3T
 			Track Material
 			Engineering Steel Wire Rubber Track

 			Engine
 			Horizontal Bar Full Diesel Water Cooling (22hp) Power: 16.18kw
 			Gear
 			Six Forward And Two Backward

 			Whole Vehicle Weight(T)
 			1.5
 			Grounding Length
 			1680

 			Crawler Model(mm)
 			350*90*56
 			Ground Clearance(cm)
 			67

 			Transmission Material Model
 			Solid Power Nodular Cast Iron21#
 			Standing Slope Angle
 			35°

 			Max. Speed
 			15km/h
 			Number Of Bottom Steel Wheels
 			5 Large + 2 Small

 			Min. Speed
 			4.5km/h
 			Self-unloading Function
 			Hydraulic Self Unloading

 			Chassis Width(m)
 			1.6
 			Packing Dimensions
 			14m³


 	 			L*W*H(mm)
 			3500*1600*2100
 			Startup Method
 			Electric Start

 			Container Size
 			2300*1500*600
 			Driving Method
 			Mechanical Drive

 			Max. flat Road Loading
 			4T
 			Track Material
 			Engineering Steel Wire Rubber Track

 			Engine
 			Weichai Huajie 490 Power: 42kw
 			Gear
 			Six Forward And Two Backward

 			Whole Vehicle Weight(T)
 			1.6
 			Grounding Length
 			1780

 			Crawler Model(mm)
 			3200*900*560
 			Ground Clearance(cm)
 			67

 			Transmission Material Model
 			Solid Power Nodular Cast Iron21#
 			Standing Slope Angle
 			35°

 			Max. Speed
 			25km/h
 			Number Of Bottom Steel Wheels
 			6 Large + 2 Small

 			Min. Speed
 			4.5km/h
 			Self-unloading Function
 			Hydraulic Self Unloading

 			Chassis Width(m)
 			1.6
 			Packing Dimensions
 			15m³

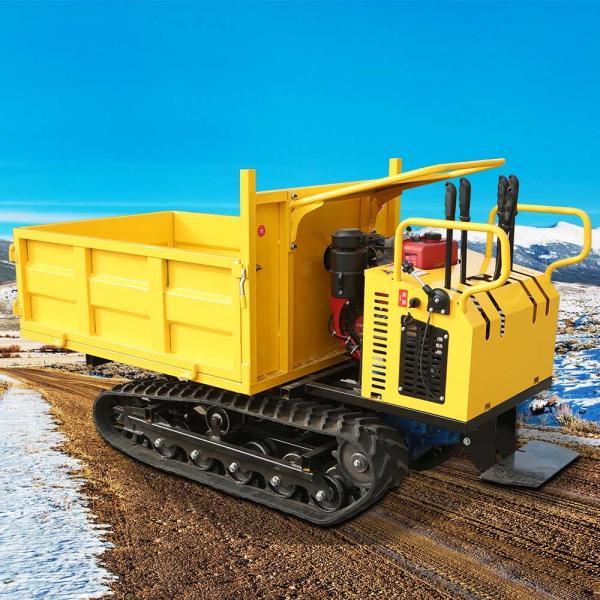

Photos of ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper

ZHONGMEI Ce Certificate Mini Dumper Construction Site 4.5km/h Auto Loader Dumper Images
