Garden Machinery Mini Dumper Self Loading Crawler Loader Dumper Mini 500kg Dumper

Product Categories

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Garden Machinery Mini Dumper Self Loading Crawler Loader Dumper Mini 500kg Dumper

Brand Name : ZHONGMEI

Model Number : 3 Ton

Certification : CE

Place of Origin : shandong

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : Quantity(sets) 1 - 1000 5 days

Delivery Time : 5 days

Packaging Details : * Wooden box with Standard Export Packing * Film plastic and wooden crate with manufacturer logo outsides. * All of the productions are inspected carefully by QC before delivery.

Product name : 4T Crawler Transport Truck

Keywords : Crawler Transport Truck

Max. flat Road Loading : 4T Mini 500kg Dumper

Gear : Six Forward And Two Backward

Crawler Model(mm) : 350*90*56 Mini 500kg Dumper

Standing Slope Angle : 35° Mini 500kg Dumper

Contact Now

Introduction of Garden Machinery Mini Dumper Self Loading Crawler Loader Dumper Mini 500kg Dumper

The dump bed of the crawler truck is its defining feature. Located at the rear of the vehicle, it is hydraulically operated and can be tilted to unload materials. The dump bed is designed to handle large volumes of material, ranging from dirt and rocks to gravel and construction debris. Its ability to raise and tilt allows for efficient unloading, eliminating the need for manual labor or additional equipment.

Crawler dump trucks are known for their impressive hauling capacity. They come in various sizes and configurations, with load capacities ranging from several tons to over 50 tons. This high load capacity, combined with the robust crawler track system, enables these trucks to transport substantial amounts of material in challenging terrains, including steep inclines, loose soil, and rocky surfaces.

Parameters of Garden Machinery Mini Dumper Self Loading Crawler Loader Dumper Mini 500kg Dumper
 	 			L*W*H(mm)
 			3300*1600*2100
 			Startup Method
 			Electric Start

 			Container Size
 			2200*1500*600
 			Driving Method
 			Mechanical Drive

 			Max. flat Road Loading
 			3T
 			Track Material
 			Engineering Steel Wire Rubber Track

 			Engine
 			Horizontal Bar Full Diesel Water Cooling (22hp) Power: 16.18kw
 			Gear
 			Six Forward And Two Backward

 			Whole Vehicle Weight(T)
 			1.5
 			Grounding Length
 			1680

 			Crawler Model(mm)
 			350*90*56
 			Ground Clearance(cm)
 			67

 			Transmission Material Model
 			Solid Power Nodular Cast Iron21#
 			Standing Slope Angle
 			35°

 			Max. Speed
 			15km/h
 			Number Of Bottom Steel Wheels
 			5 Large + 2 Small

 			Min. Speed
 			4.5km/h
 			Self-unloading Function
 			Hydraulic Self Unloading

 			Chassis Width(m)
 			1.6
 			Packing Dimensions
 			14m³


 	 			L*W*H(mm)
 			3500*1600*2100
 			Startup Method
 			Electric Start

 			Container Size
 			2300*1500*600
 			Driving Method
 			Mechanical Drive

 			Max. flat Road Loading
 			4T
 			Track Material
 			Engineering Steel Wire Rubber Track

 			Engine
 			Weichai Huajie 490 Power: 42kw
 			Gear
 			Six Forward And Two Backward

 			Whole Vehicle Weight(T)
 			1.6
 			Grounding Length
 			1780

 			Crawler Model(mm)
 			3200*900*560
 			Ground Clearance(cm)
 			67

 			Transmission Material Model
 			Solid Power Nodular Cast Iron21#
 			Standing Slope Angle
 			35°

 			Max. Speed
 			25km/h
 			Number Of Bottom Steel Wheels
 			6 Large + 2 Small

 			Min. Speed
 			4.5km/h
 			Self-unloading Function
 			Hydraulic Self Unloading

 			Chassis Width(m)
 			1.6
 			Packing Dimensions
 			15m³

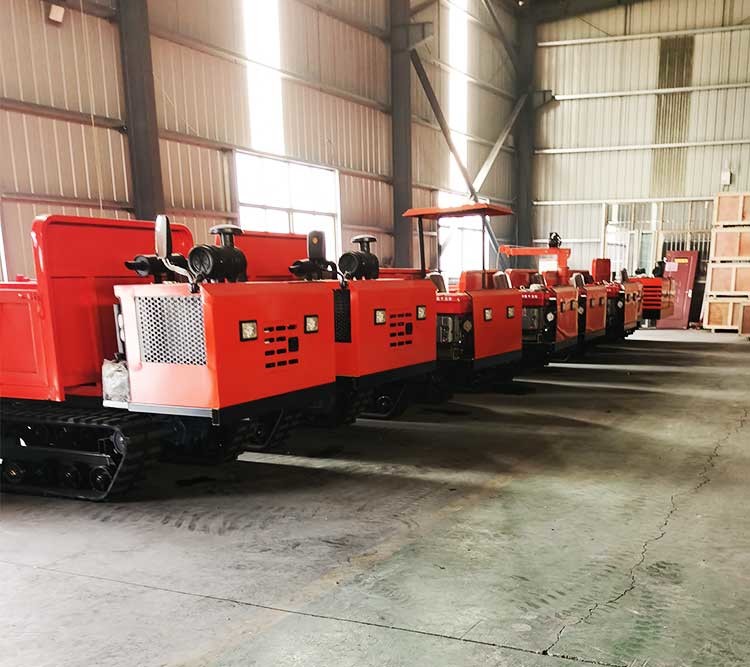

Photos of Garden Machinery Mini Dumper Self Loading Crawler Loader Dumper Mini 500kg Dumper

Garden Machinery Mini Dumper Self Loading Crawler Loader Dumper Mini 500kg Dumper Images
